Ignition Cable
Ignition cable
Automotive Ignition Cable
Carbon Suppressed Core Cable

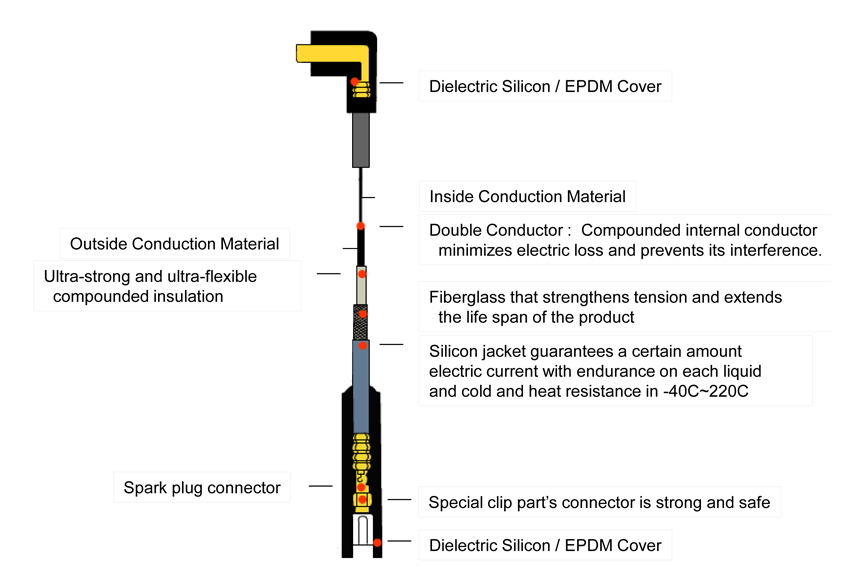

DESCRIPTION
Ignition cable with a resistive core for use where
suppression is required.
The cable can be terminated by folding the conductor
beneath the terminal.
CABLE DIAMETER
7.0mm+/- 0.3mm
CONDUCTORS
Carbon Core Conductor.
Glass yarn treated with carbon and coated with
conductive silicone rubber
REINFORCEMENT
Braided glass fiber yarn over the insulated core for extra strength.
(Where requested)
COVERING
| Insulation | Sheath | Temperature Rating |
|---|---|---|
| SILICONE | SILICONE | - 40 to +220oC |
Temperature listings as per ISO3808
TEST VOLTAGE
7.0m / 35kV
COLOR
Outer Sheath - Black, Grey
STANDARD
ISO 3808 or customer specification
CABLE PRINTING
white
Method 1.

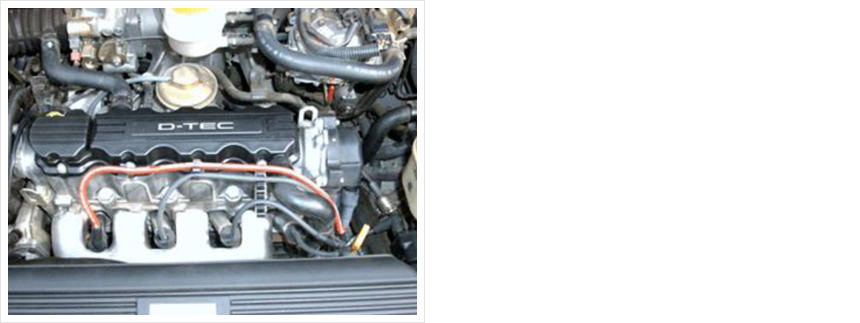

CAR MODEL
DOHC ENGINE : ESPERO 1.5 DOHC, SOHC ENGINE : REZZO LPG

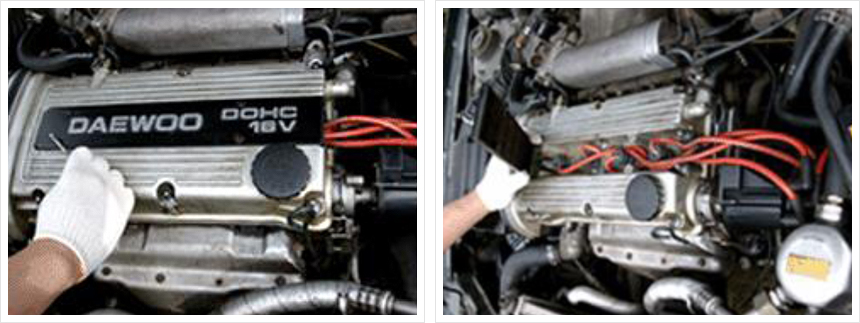

One of DOHC engine, a car has engine cover is working after remove that.
You need wrench, spanner or + screwdriver for remove engine cover.

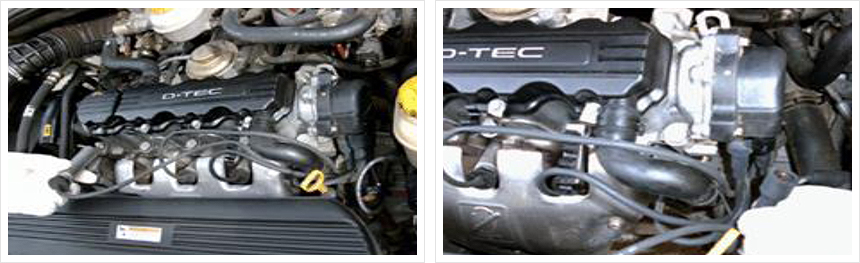

1. Remove most left side cable or the existing cables.
Method 2.
After remove ignition cable & power distributor’s cap, you install new cable of longest and similar cap at the existing
location. If you push boots side continuously, an impression to take properly raises.
2. You install cap at the existing power distributor’s location.
(Be careful. If location is altered than ignition sequence will be change.)

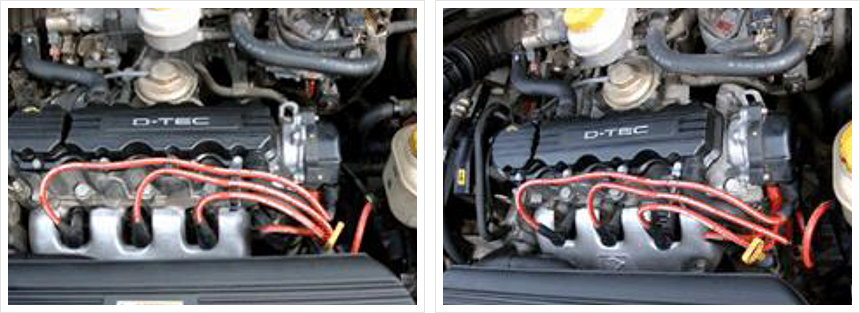

3. Next, you remove a second cable from left. After that you install the cable to remain like No.1 &2.
4. We do all a remainder cable finish.
5. A task completion.
[TIP] The boots & cap of the previous wire can be same or different.
[TIP] There is a difference, over 2Cm in length, between the previous wire & our wire.
